Stage & Theatre Cord-Drawn Curtain Track
Maximum-duty 60mm cord-drawn aluminium curtain track for stage, theatre and large-auditorium curtains up to 55kg.
- Lifetime warranty on the aluminium track
- 2-3 day dispatch from our UK store
- 5-year warranty on cubicle curtains
- Spares in stock for same-day picking
- UK quote team for bespoke projects
- Compliant to HTM 66 — NHS-suitable
A maximum-duty 60mm cord-drawn aluminium curtain track for stage, theatre and large-auditorium curtains. Pre-tensioned cord, heavy-duty roller runners, rated up to 55kg.
Where the CT-0077 is used
- School halls, theatres and auditoriums — main stage and traveller curtains
- Lecture theatres and conference centres with large drop curtains
- Large hotel ballrooms and event spaces
- Industrial and warehouse screens that need durable, regular operation
- Bespoke curved tracks for circular stages or atriums
Build specification

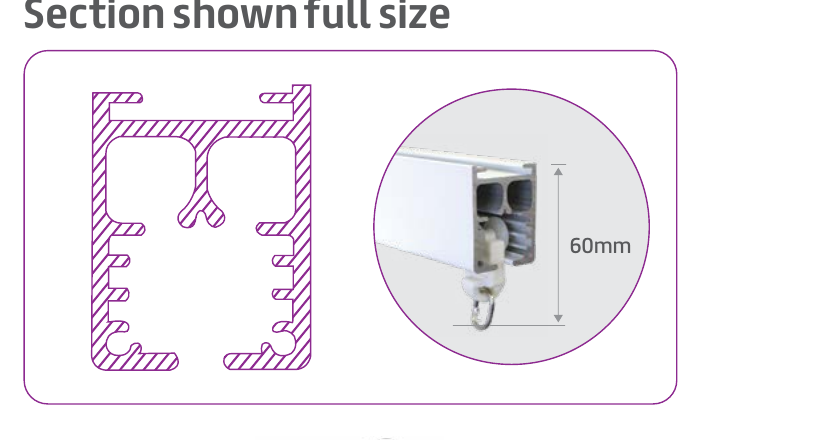

- Profile: 60mm heavy-duty white powder-coated aluminium
- Operation: pre-tensioned cord (or uncorded, hand-drawn, on request)
- Max curtain weight: 55kg (with suitable fixings)
- Fixing centres: up to 800mm
- Bend radius: 255mm minimum — can be curved to shape
- Runners: 12 heavy-duty roller runners per linear metre, supplied
- End stops: end pulleys included; pre-tensioned cord assembly with cleat included

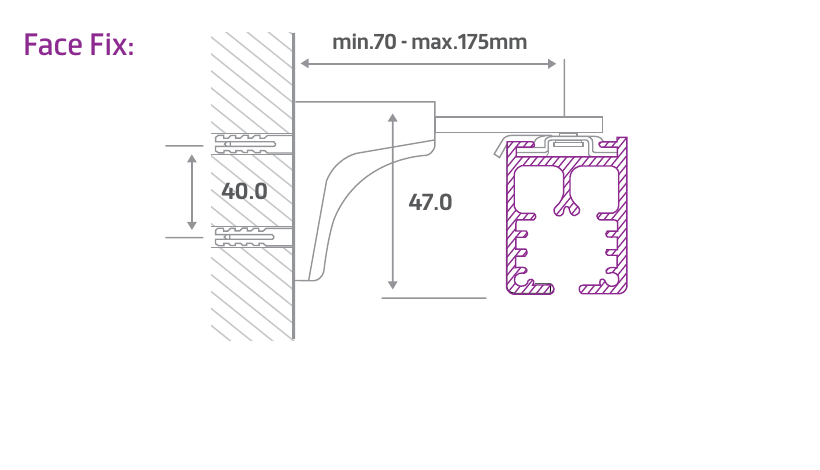

- Fixings: top-fix as standard; face-fix brackets (min.70mm – max.175mm projection) available on request
- Finish options: white as standard, any RAL colour on request
- Warranty: lifetime on the aluminium track
Installation

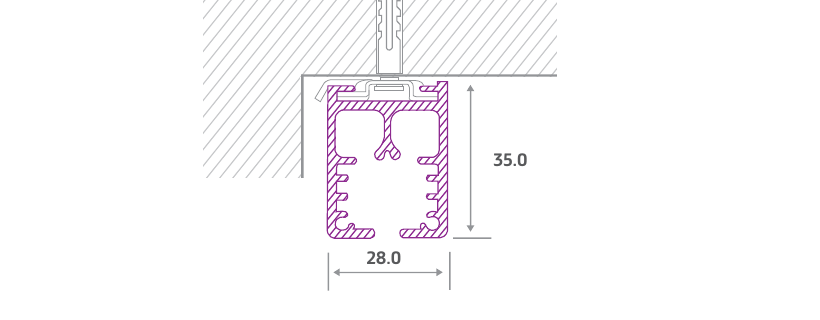

Top-fix as standard at centres up to 800mm — we recommend secure structural fixings on every bracket. Pre-tensioned cord is dressed at the factory; on site, mount, hang, then anchor the cord cleat to the wall at a safe child-height distance.
This is a specified-project track — we’re happy to survey and quote installation alongside the track supply (survey fee credited against the order).
Why buy from Cubicle Tracks
- UK stock for 2–3 working day dispatch on standard lengths
- Lifetime warranty on the aluminium track
- Free design and measure help from our UK quote team, Mon–Fri
- NHS Trusts, education and public sector purchase orders welcomed — request a quote then pay by BACS on standard 30-day terms
- Spares and components held in stock for full lifetime support
FAQs
How is the price calculated?
The price is calculated automatically from the length you enter. Pricing is per whole metre — rounded up to the next metre — and includes VAT. The single price you see covers the complete kit including track, runners/gliders, end stops, brackets and operating cord (where fitted).
Can I bend the track to shape?
Yes — this track can be factory-bent to your drawn shape. Send through a top-down sketch with dimensions when you order, or just enter your wall-to-wall length now and we’ll be in touch to confirm the shape.
Do you supply curtains to fit?
Yes. We supply both disposable cubicle curtains and washable made-to-measure cubicle curtains — both designed to hang from this track.
Do you install?
Yes — we offer nationwide installation. There’s a paid site survey for installation work which is credited against the order if you proceed. Request a quote for installation.
